CS020 Compact Series Enclosure Air Conditioners

CS020+

Model CS020

Model CS020126/CS020236 60 Hz Drawing

Capacitor	Compressor Thermal Overload	Compressor
Digital Controller	Evaporator Fan	Condenser Fan
Gasket Installation Kit	High Pressure Switch	Low Pressure Switch
Temperature Probes	Thermal Expansion Valves	Filter Media
Condenser Fan Cut-In Pressure Switch	Shrouds

Capacitors
Item Code	Item Description	Where Used	Price

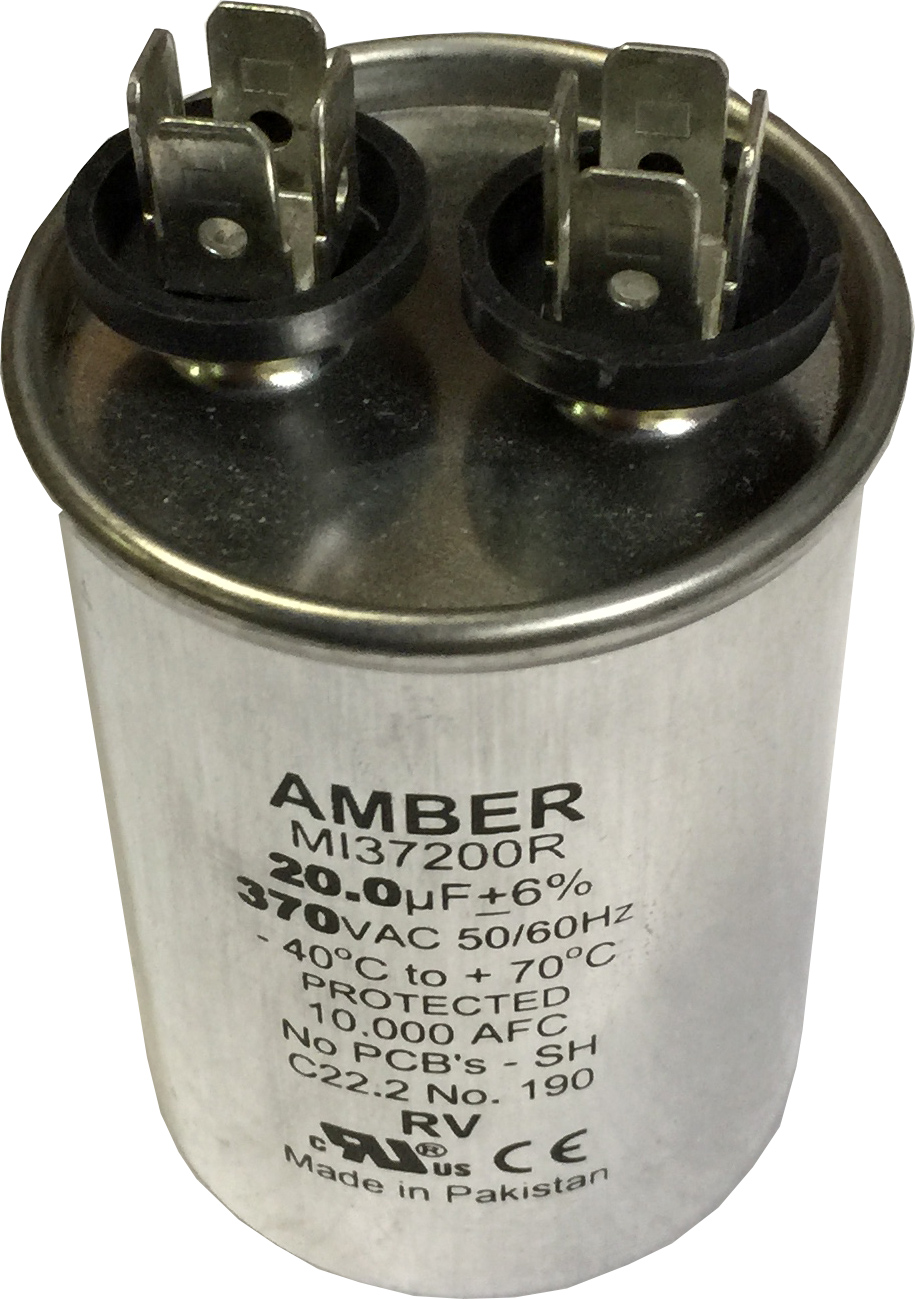

54002-1 BUY NOW	Capacitor	CS020 110V 60 Hz Serial #104002 to present	$27.50

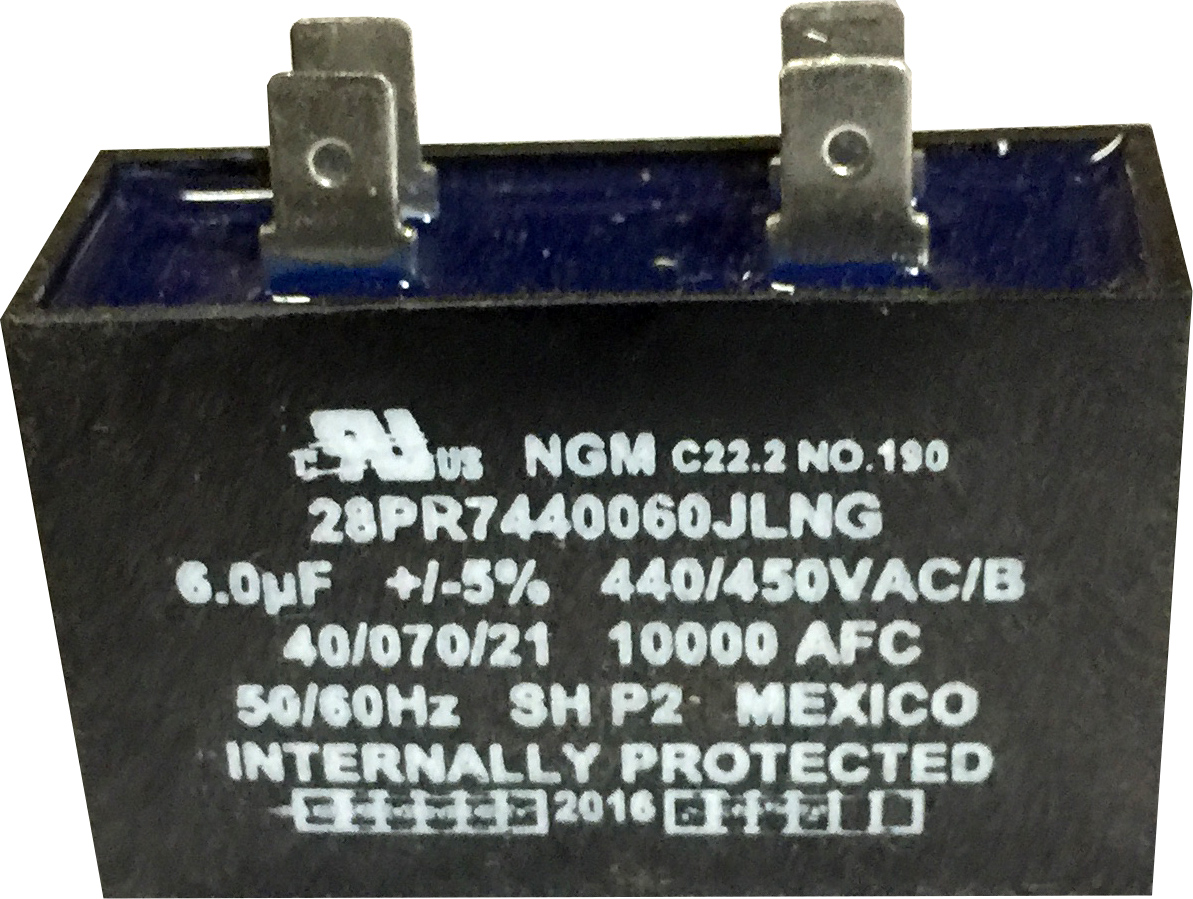

54040-1 BUY NOW	Capacitor	CS020 220V 60 Hz Serial #104002 to present	$27.50

Back to top of page

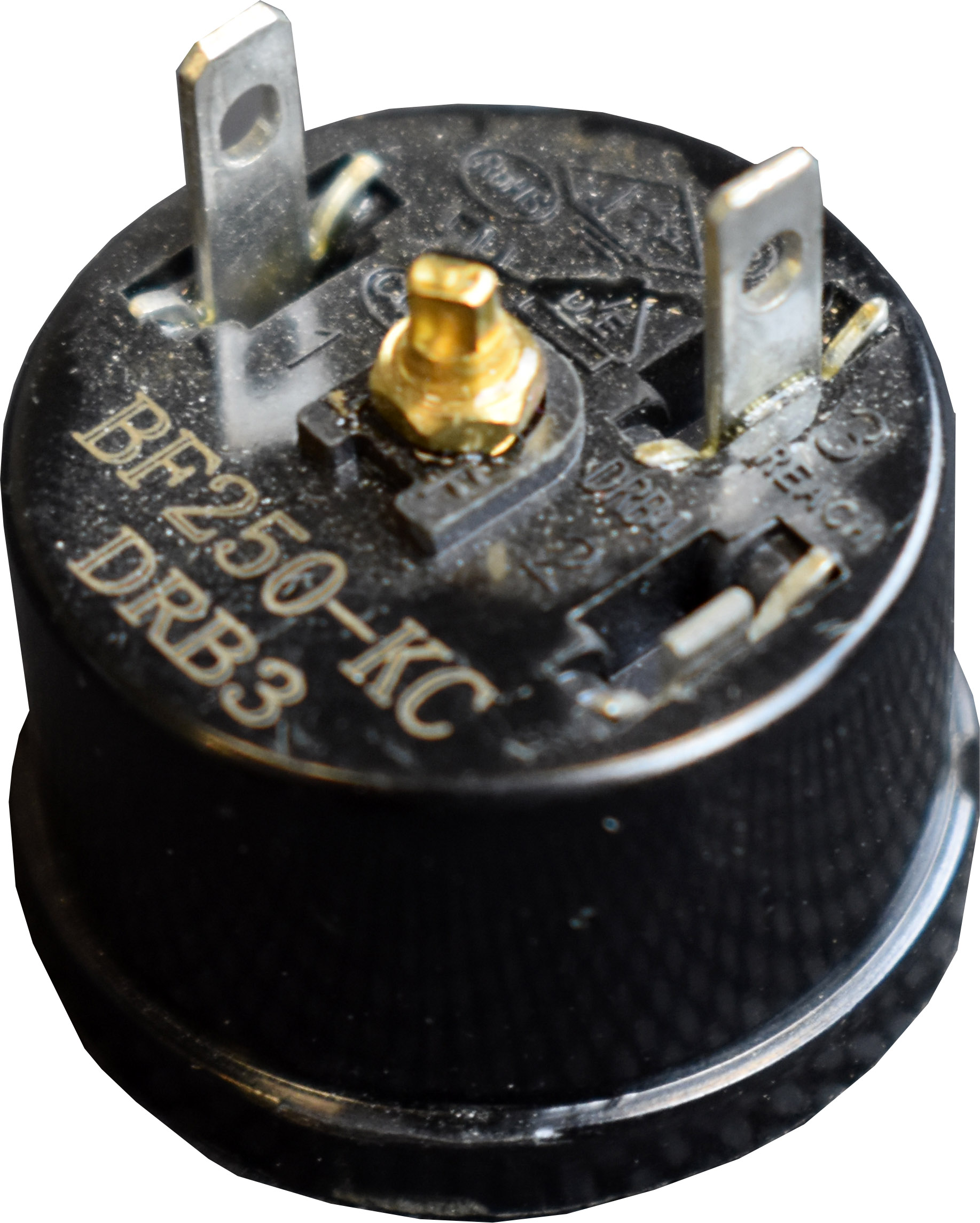

Compressor Overload Protectors
Item Code	Item Description	Where Used	Price
31003-2 BUY NOW	Compressor Thermal Overload	CS020 110V 60 Hz Serial #104002 to present	$27.50
31610-2 BUY NOW	Compressor Thermal Overload	CS020 220V 60 Hz Serial #104002 to present	$27.50

Back to top of page

Compressors
Item Code	Item Description	Where Used	Price
31003-1 BUY NOW	Compressor	CS020126 60 Hz Serial #104002 to present	$352.00
31610-1 BUY NOW	Compressor	CS020236 60 Hz Serial #104002 to present	$325.00

Back to top of page

Controllers
Item Code	Item Description	Where Used	Price
52110-1 BUY NOW	Digital Controller	CS020 110V 60 Hz Serial #104002 to present	$109.00
52112-1 BUY NOW	Digital Controller	CS020 220V 60 Hz Serial #104002 to present	$109.00
52111-1 BUY NOW	Digital Controller	CS020 110V 60 Hz w/both Dry Contact and Heater Serial #104002 to present	$189.00
52111-2 BUY NOW	Digital Controller	CS020 220V 60 Hz w/both Dry Contact and Heater Serial #104002 to present	$217.00

Back to top of page

Evaporator Fan
Item Code	Item Description	Where Used	Price
41005-1-1-IP55 BUY NOW	Evaporator Fan	CS020 110V 60 Hz Serial #104002 to present	$76.00
41005-2-1-IP55 BUY NOW	Evaporator Fan	CS020 220V 60 Hz Serial #104002 to present	$76.00

Back to top of page

Condenser Fan
Item Code	Item Description	Where Used	Price
41025-1-1 BUY NOW	Condenser Fan	CS020 110V 60 Hz Serial #104002 to present	$96.00
41025-2-2 BUY NOW	Condenser Fan	CS020 220V 60 Hz Serial #104002 to present	$90.00

Back to top of page

Filter Media
Item Code	Item Description	Where Used	Price
44201 BUY NOW	Filter Media Exp. alum, 250 micron, 60% efficiency 12 pack	CS020 110V 60 Hz Serial #104002 to present CS020 220V 60 Hz Serial #104002 to present	$179.00

Back to top of page

Gaskets
Item Code	Item Description	Where Used	Price
71407-CS02 BUY NOW	Installation Gasket Kit	CS020 110V 60 Hz Serial #104002 to present CS020 220V 60 Hz Serial #104002 to present	$27.50

Back to top of page

Low Pressure Switch
Item Code	Item Description	Where Used	Price
38151-1 BUY NOW	Low Pressure Switch	CS020 110V 60 Hz Serial #104002 to present CS020 220V 60 Hz Serial #104002 to present	$27.50

Back to top of page

High Pressure Switch
Item Code	Item Description	Where Used	Price
38181-1 BUY NOW	High Pressure Switch	CS020 110V 60 Hz Serial #151302 to #160902 CS020 220V 60 Hz Serial #104002 to #160902	$27.50
38174-1 BUY NOW	High Pressure Switch	CS020 110V 60 Hz Serial #160903 to present CS020 220V 60 Hz Serial #160903 to present	$27.50

Back to top of page

Condenser Fan Cut-In Pressure Switch
Item Code	Item Description	Where Used	Price
38181-1 BUY NOW	Condenser Fan Cut-In Pressure Switch	CS020 110V 60 Hz Serial #104002 to #151301 CS020 220V 60 Hz Serial #104002 to #151301	$35.00

Back to top of page

Temperature Probe
Item Code	Item Description	Where Used	Price
52126-1 BUY NOW	Temperature Probe	CS020 110V 60 Hz Serial #104002 to #170102 CS020 220V 60 Hz Serial #104002 to #170102	$27.50
52126-2 BUY NOW	Temperature Probe	CS020 110V 60 Hz Serial #170103 to #173504 CS020 220V 60 Hz Serial #170103 to #173504	$27.50
52126-2-2 BUY NOW	Temperature Probe	CS020 110V 60 Hz Serial #173505 to present CS020 220V 60 Hz Serial #173505 to present	$27.50

Back to top of page

Thermal Expansion Valve TXV
Item Code	Item Description	Where Used	Price
32023-1 BUY NOW	Thermal Expansion Valve	CS020 110V 60 Hz Serial #104002 to present CS020 220V 60 Hz Serial #170103 to present	$61.00

Back to top of page

Shrouds
Item Code	Item Description	Where Used	Price
20015-1 BUY NOW	Shroud CRS Painted	CS020 110V 60 Hz Serial #104002 to present CS020 220V 60 Hz Serial #104002 to present	$278.00
20015-4304 BUY NOW	Shroud SS 304 #4	CS020 110V 60 Hz Serial #104002 to present CS020 220V 60 Hz Serial #104002 to present	$418.00
20015-4316 BUY NOW	Shroud SS 316 #4	CS020 110V 60 Hz Serial #104002 to present CS020 220V 60 Hz Serial #104002 to present	$460.00

Back to top of page
